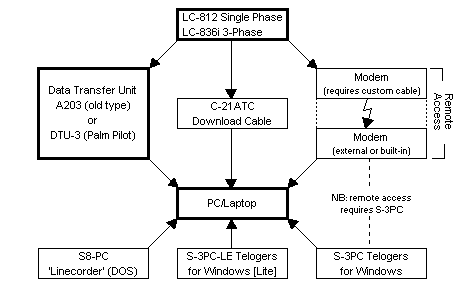

Below is a guide showing the primary components of a Telog Linecorder system. Only the two models available in Europe are shown being the LC-812 (single phase) and LC-836i (3-phase). Each phase is capable of measuring Voltage and Current.

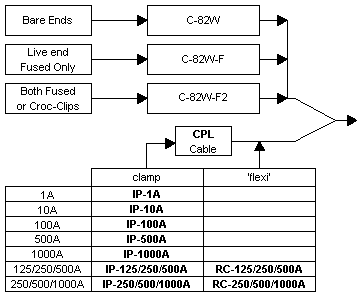

Each phase can be fed from different sources, these are shown below. The C-82Wx cables are voltage, the table are current sensor options.
