Reliable Power Meters
Power Recorder
Connector Pinouts and Cables

Below are the pinouts of the various sockets on the front panel of the Reliable Power Meters' Power Recorder and associated cables.

Pin numbering is in an anti-clockwise direction when looking at the back (solder side) of the plug. Pin 1 indicated by the half-moon line drawn at the pin.



Current Input - (front panel, current clamp lead, and 'flexi')

ct connector

1 - Flexi Input
2 - Signal Ground
3 - Flexi Output
4 - Signal Input
5 - Ground
6 - Clamp Resistor



Current Clamp Connector

ct connector

1 - Signal Input
2 - Signal Ground
3 - Ground
4 - Clamp Resistor



LAN Input

lan connector

1 - LAN pin 1
2 - LAN pin 2
3 - LAN pin 3
4 - External DC supply
5 - Chassis Ground
6 - LAN pin 6
7 - Internally connected, do not use
8 - Reset

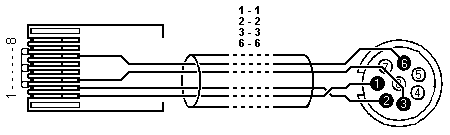

LAN Cable

lan cable




If there are any questions please email

NOTE: This web page does not form part of any official documentation.
Any information contained herein is used at own risk.
